FLYER PLUS with opening legs (electrical or mechanical)

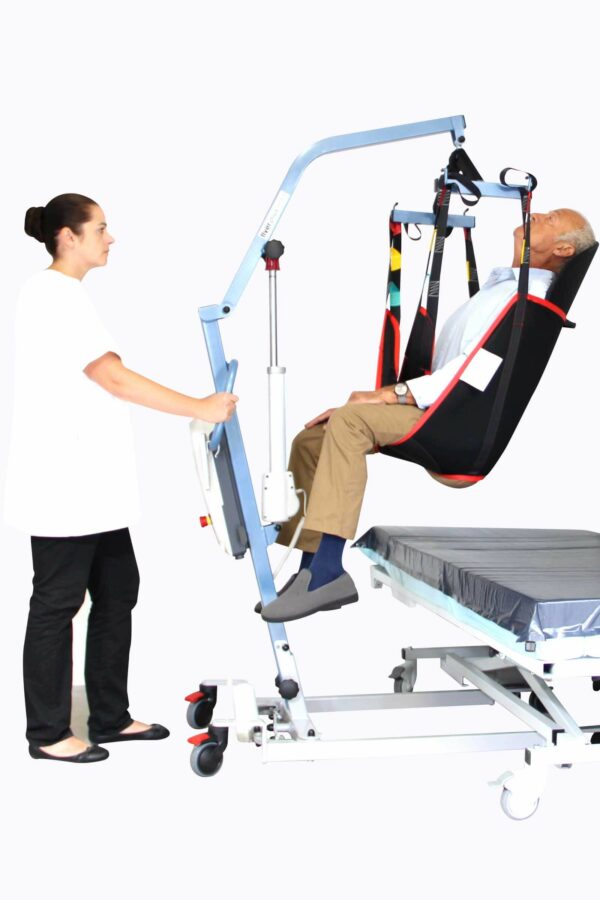

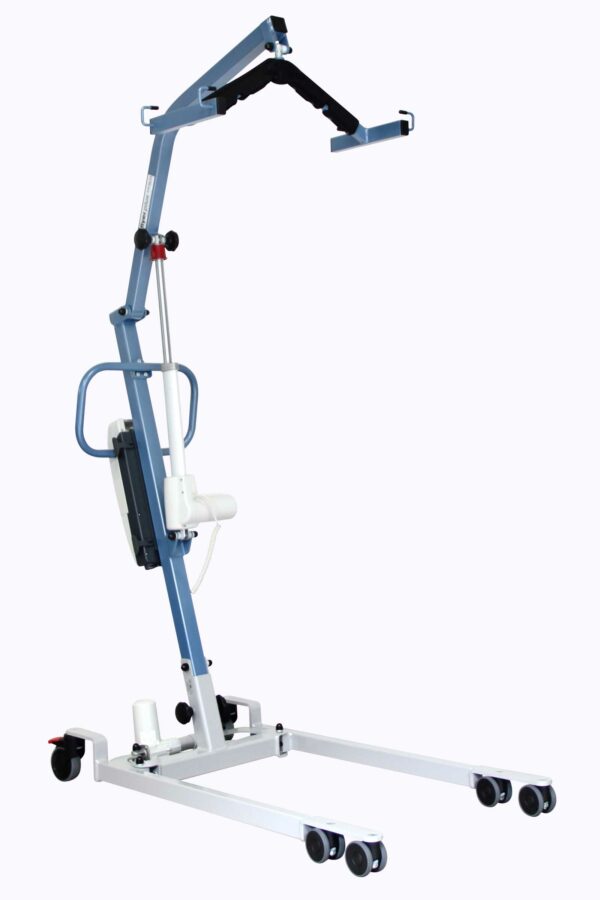

CE certified and manufactured in France, the FLYER PLUS with opening legs (electrical or mechanical) is a high-end patient lift, made in steel and whose maximum lifting capacity is 180 kg.

It is a high-end device allowing secure and optimized handling for daily transfers due to its enhanced mobility and flexibility of use.

Specially designed for community use, it is equipped with a lithium battery which enhances the use of the device by increasing the time of use and reducing the charging time.

שתף עם חברים

Its proportions allow a great ease of movement while remaining easy to handle, providing simplicity of use and versatility to perform secure and comfortable transfers.

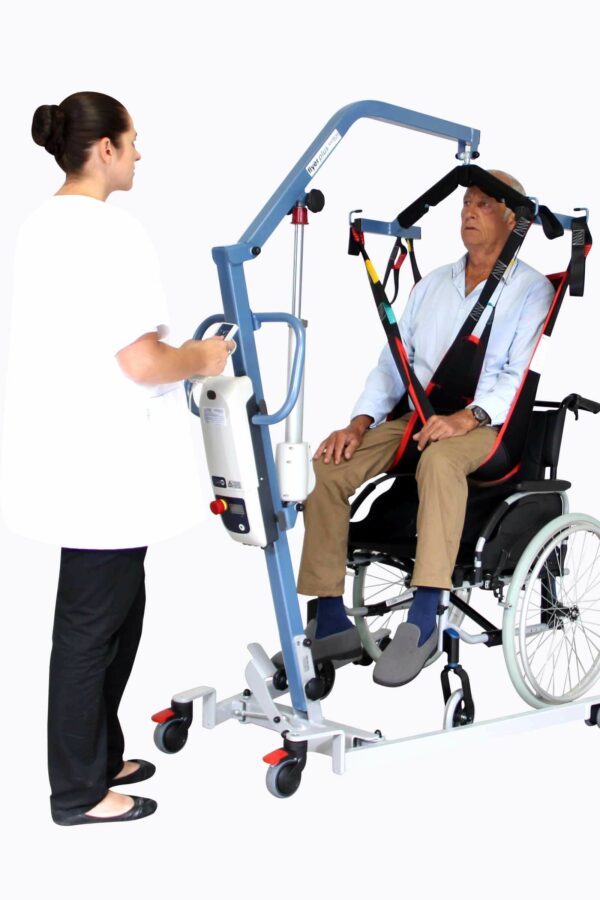

Its opening legs (electrical or mechanical), from 63 cm to 105 cm, allows large widths armchairs or wheelchairs and an ease of access.


The FLYER PLUS with opening legs (electrical or mechanical) is mostly recommended:
– for a patient who has no self-support
– for a patient who is totally dependent and bedridden


– 360-degree rotation of the spreader bar for a simplified positioning
– Wheels tread and double ball bearings suitable for interior floors
– Great lifting range limiting the risk of knee contact against the actuator and to perform a lifting from the floor
– Easy folding/unfolding without any tools for easy transport

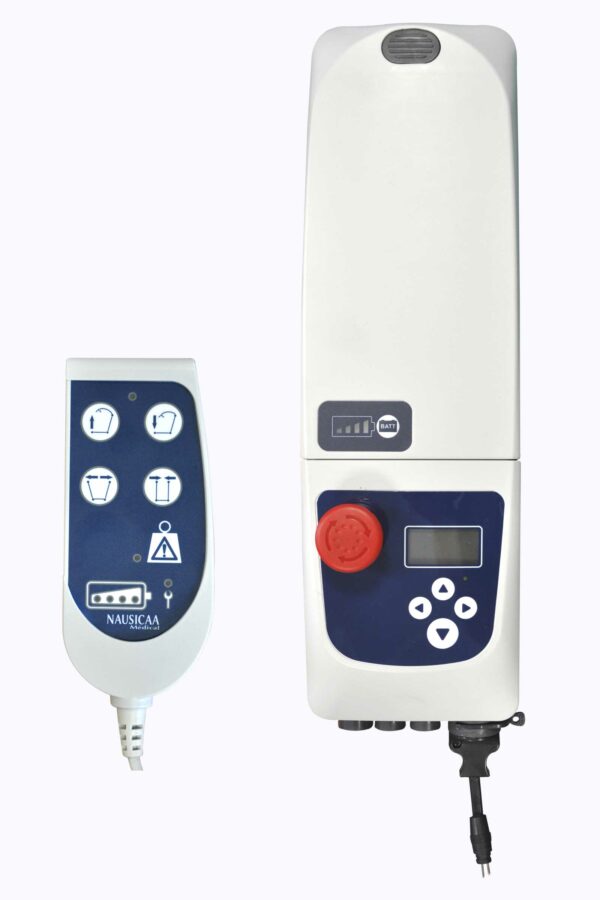

– New motorisation: updated software for an enhanced use

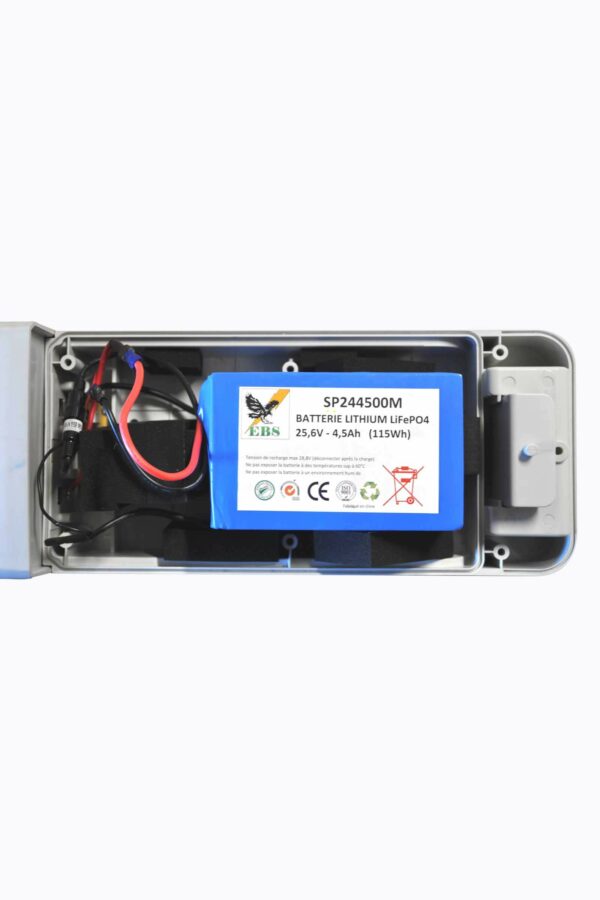

– Lithium battery for a longer time of use

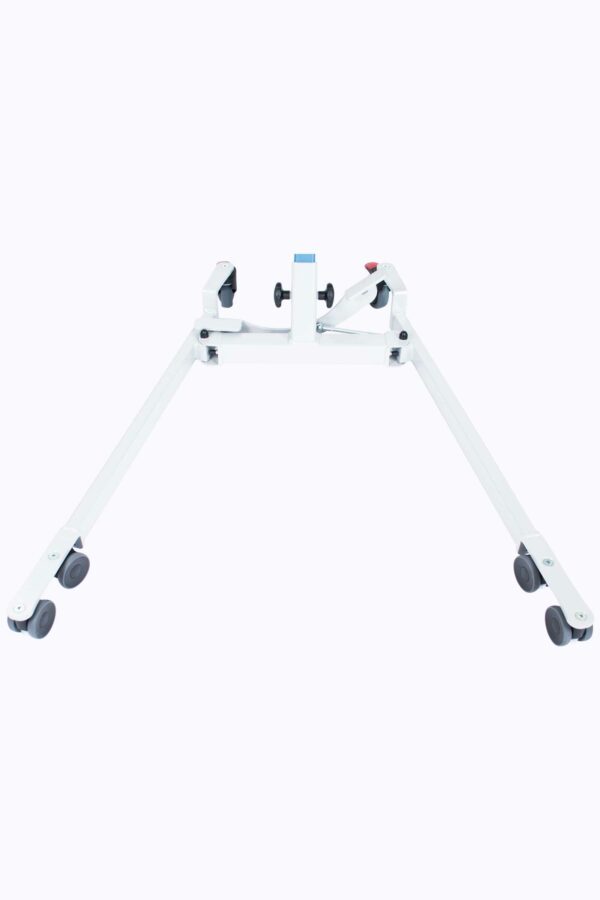

– Opening base legs: electrical or mechanical

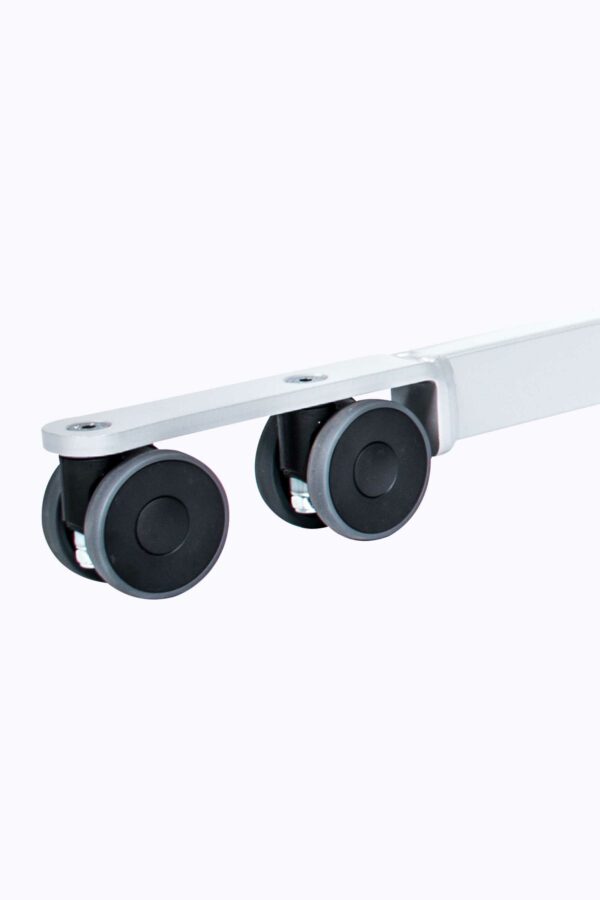

– 75 mm wheels with reduced height (same overall height as the 50 mm wheels) to pass under the lowest beds



Made in France

CE certified

Class 1 medical device

Weight capacity: 180 kg

Lifting actuator power: 8 000 N

Electrical opening actuator power: 3 000 N

Total weight with electrical opening: 42 kg

Total weight with mechanical opening: 40 kg

Steel manufacturing

Epoxy baked painting

Double ball bearing castors

Standard: NF EN ISO 10535:2007

Warranty: 5 years (except battery and breakage)


Total length: 1250 mm
Minimum lifting height: 570 mm
Maximum lifting height: 1780 mm
Total height: 1320 mm
Height of chassis: 85 mm
Minimum base width: 630 mm
Maximum base width: 1050 mm
Turning diameter: 1350 mm
