WAYUP 4 with opening legs (electrical or mechanical)


CE certified and manufactured in France, the WAYUP 4 with opening legs (electrical or mechanical) is a mid-range stand-up lift, made in steel and whose maximum lifting capacity is 150 kg.

Derived from the WAYUP, it is an exceptional device by the combination of its compact and optimized design, associated with its opening legs.

As an option, it is available with a lithium battery which enhances the use of the device by increasing the time of use and reducing the charging time.

שתף עם חברים

The device allows the patient to reach a standing position (total or partial) by activating her bust tonicity and supports the lack of tonicity while stimulating the natural raising scheme.
Its opening base legs (electrical or mechanical), from 54 cm to 75 cm, allows large widths armchairs or wheelchairs and an ease of access.


The WAYUP 4 with opening legs (electrical or mechanical) is mostly recommended:
– for a patient who is independent and ambulatory
– for a patient who has some degree of self-support
– for a patient who is able to bear some weight on at least one leg and sits in a wheelchair
Regarding the most adapted sling for this model, we recommend the Specific Sling.


– Activation of mobility and transit during daily transfers
– Optimized design for comfort
– Opening base legs for an ease of access to armchairs or wheelchairs
– Complete release of the patient’s lower body to effectively perform a change


– New motorisation: updated software for an enhanced use

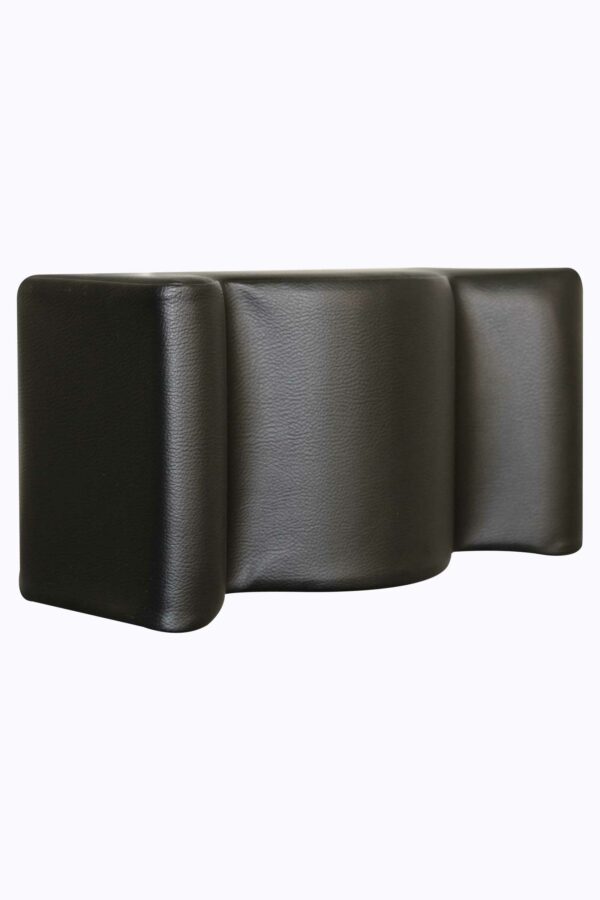

– Comfortable foam shin block
– Removable 3-function footrest: heel block, trendelenburg, reverse trendelenburg
– Opening base legs: electrical or mechanical



CE certified

Class 1 medical device

Weight capacity: 150 kg

Lifting actuator power: 8 000 N

Electrical opening actuator power: 3 000 N

Total weight with electrical opening: 37 kg

Total weight with mechanical opening: 35 kg

Steel manufacturing

Epoxy baked painting

Double ball bearing castors

Standard: NF EN ISO 10535:2007

Warranty: 5 years (except battery and breakage)

Option: lithium battery – 2 years warranty


Total length: 990 mm
Minimum lifting height: 870 mm
Maximum lifting height: 1310 mm
Total height: 1059 mm
Height of chassis: 113 mm
External width legs closed: 540 mm
Internal width legs open: 750 mm
Turning diameter: 1100 mm
